Info dasar
Model NO .: VS7.0-EM
Sertifikasi: CE, EN15194, CQC
Dilipat: Dilipat
Kecepatan Maks: 20-40km / jam
Rentang per Daya:> 60km
Kecepatan: 27 Kecepatan
Mengemudi Motor: Tengah
Kapasitas Baterai: 7ah ~ 13ah
Ukuran Bingkai: 15.5 ", 16.5", 17.5 ", 19"
Garansi: 24 Bulan
Merek Dagang: VISP / Customizable
Paket Transportasi: Kemasan Karton
Spesifikasi: 36V250W, 48V350W
Asal: China. Shenzhen

Deskripsi Produk

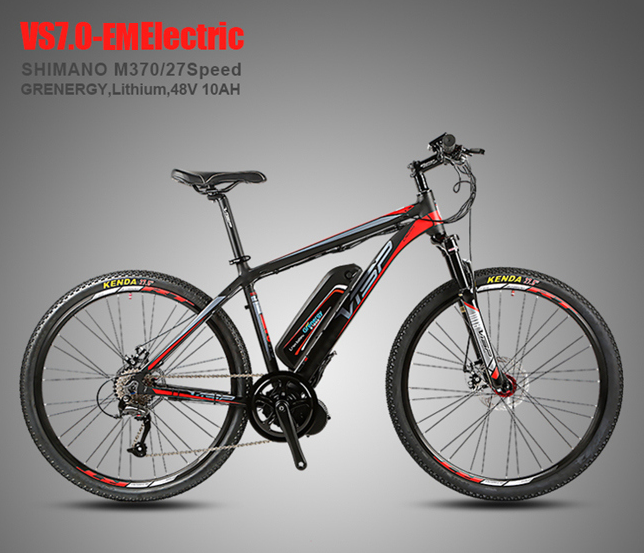

48V350W 36V250W lithium battery Mid Motor Mountain Electric Bike

Bike.Model	VS7.0-EM    Electric MTB
Wheel.Size	26"/27.5"
Frame.Size	15.5"/16.5"/17.5"/19"
Bike.Color	BlackRed/BlackYellow/Customized
Bike.Net Weight	19.5KG
Bike.Packing Weight	25KG
Frame	Aluminum alloy with Smooth Welding&cable inside
Handelbarset	Aluminum alloy with anode
Fork	Aluminum alloy suspension mechanical lockout
Derailleur Lever	SHIMANO M370-27 Speeds
Front Derailleur	SHIMANO M370
Rear Derailleur	SHIMANO M370
Crankset	PROWHEEL Aluminum alloy 44-32-22T
Cassette	SUGEK-9S  11-32T
Chain	YBN-9S
Brake	YINXIN mechanical disc
Hub	RETROSPEC Aluminum alloy Ball-bearings
Rim	Aluminum alloy double-deck&rivets
Tire	KENDA K1187 26"*1.95 or 27.5"*1.95"
Grip	TW Single-lock Relief Circular
Saddle	Comfortable for MTB
Pedals	Aluminum alloy smooth
Electric Parameters
Battery	Lithium,48V/36V 10Ah-13Ah
Full charging time	5~8 Hours
Charging times	2000 Times
Endurance miles	Pure electric mode,40KM (10Ah)
	Assist riding mode,60~80KM (10Ah)
Motor	8FANG, 350W48V / 250W36V, Middle drive
	Brushless DC low resistance
Maximum speed	40 KM/H
Controller	8FANG, DC dual-mode brushless control
	Independent integrated IC control chip
	3 files intelligent control system
Monitor	LCD digital display control instrument
Display function	MPH/Single mileage/Total mileage
	Electricity/Output power/Riding time
	Number of gears/Maximum speed/Wheel Setting
	Motor speed/Fault indication
Waterproof grade	IPS 6
Assistance	3 magnetics type power assisted induction magnetic ring
Speed Handle	Stepless speed regulating handle
Brake control	Power brake handle
